●10.4" Touch Display
●1024x768(XGA) 4:3 Panel
●Normally Black
●LVDS Interface
●RTP Touch, COB Type
●Air Bonding
●EETI IC
●USB Touch Interface
●Touch with Glove Available
Along with the advancement in technology trends, display products are moving towards touch applications bringing convenience to our day to day lives making panel productions tightly linked to touch technologies.
We use stable ICs and bonding equipment to maintain high yield and quality.
Touch function requires professional calibration to avoid the interference of the motherboard, driver board and other electrical appliances to achieve the best experience.
We have professional knowledge, technology and clean room to bring customers high reliability products!
Application：POS.Gaming.IPC.HMI.KIOSK.KVM.Laptop.Rugged PC.Automation machine...
10.4" Touch Display
Specification |
Resolution (Pixels) |
1024 x 768 (XGA) |
| White Luminance |
≧400 (typ)cd/㎡ |
| Viewing Angle |
88/88/88/88 |
| LED Life Time(Hrs) |
≧50,000 |
| Interface |
LVDS |
| Touch Type |
RTP |
| Bonding Type |
Air Bonding |
Touch Structure
|
F/G |
| Touch IC |
EETI |
| Surface Hardness |
≧3H |
| FPC Type |
COB |
| Touch with Glove |
Available |
| Touch Interface |
USB |
| Operating Temperature |
-10~60 ℃ |
Front view
2D Drawing
Front view
2D Drawing

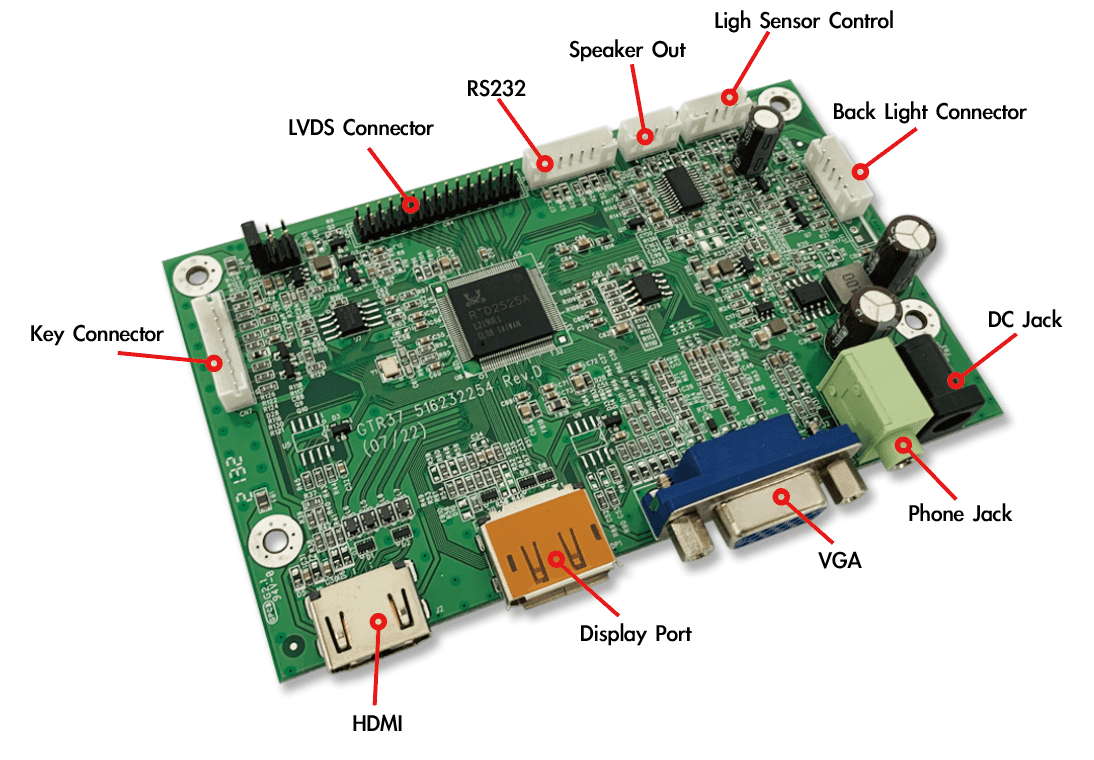

AD-0037D LCD Control Board
● Support to 1920x1080 @60 Hz
● Signal Input：VGA.HDMI.DP.Audio Phone Jack
● Signal Onput：Dual port 6/8 bits LVDS
● On-board Realtek solution offers top notch reliability, precision, and robustness.
● We provide detailed technical parameters for best performance.
● Offer in-box packaging services for cables including OSD Key Cable, Panel Cable, and Backlight Cable.
