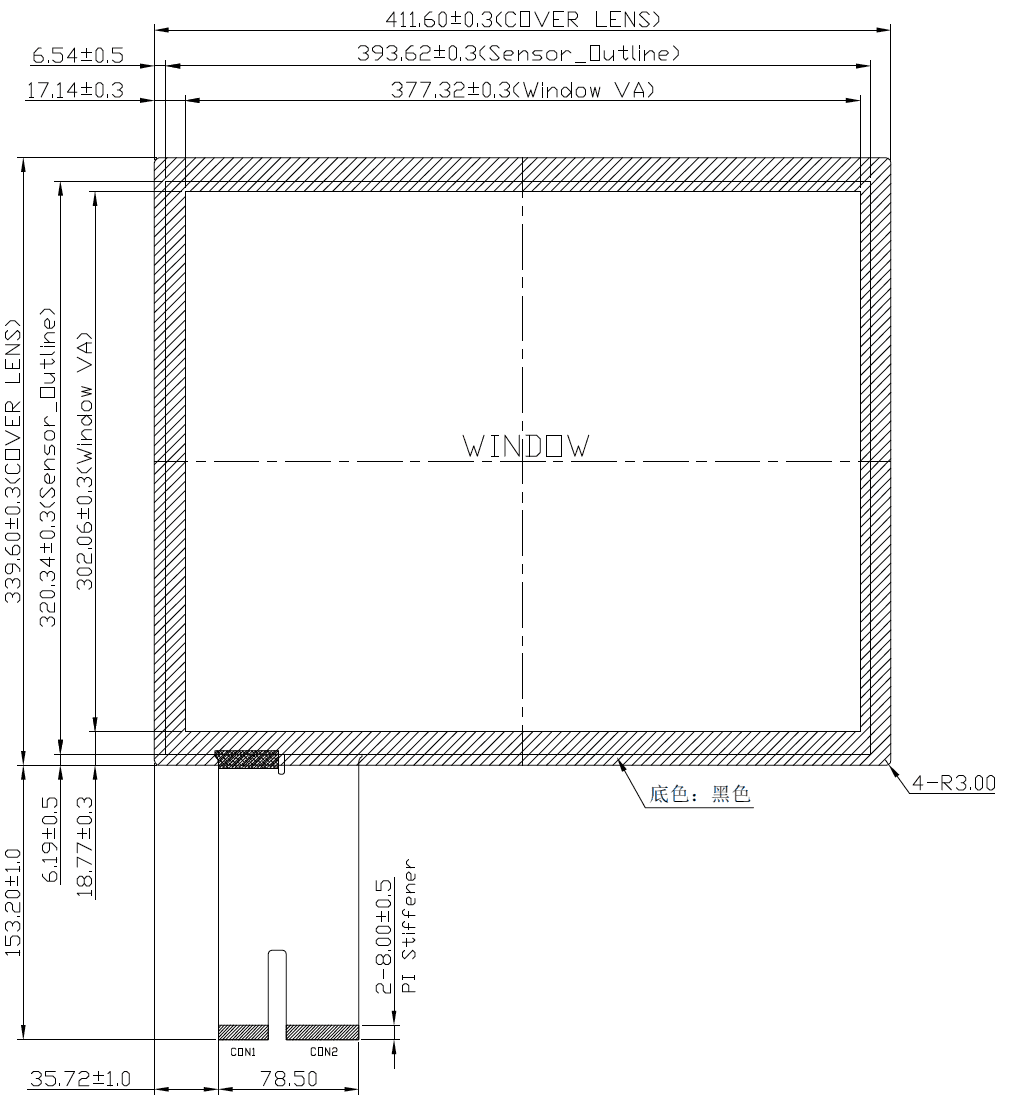

19" Touch Display Specification

Part	Description	F190PET-T21	F190PET-Z01	F190PET-TG1
LCD Display	Inch	19"	19"	19"
	Resolution	1280 x 1024	1280 x 1024	1280 x 1024
	Interface	LVDS	LVDS	LVDS
	Brightness (cd/㎡)	250	350	1,600
	Viewing Angle	85/85/80/80	89/89/89/89	85/85/80/80
	B/L Life Time (Hr)	30K	50K	50K
	Backlight Driver	without	Built-in	Built-in
	Operating Temp. (℃)	0 ~ 50	-15 ~ 70	-30 ~ 70
Touch PCAP	Structure (Glass Thickness)	G/G (2.75 mm)	G/G (2.75 mm)	G/G (2.75 mm)
	Touch IC	EETI EXC80H84	EETI EXC80H84	EETI EXC80H84
	FPC Type	COB	COB	COB
	Touch Controller	EXC84H4254STAG	EXC84H4254STAG	EXC84H4254STAG
	Interface	USB / RS232	USB / RS232	USB / RS232
	Surface Treatment	Clear	Clear	Clear
	Transparency	≧ 90%	≧ 90%	≧ 90%
	Surface Hardness	≧ 7H	≧ 7H	≧ 7H
	Operating Temp. (℃)	-20 ~ 70	-20 ~ 70	-20 ~ 70
	Allow Touch Points	≦ 10 Points	≦ 10 Points	≦ 10 Points
	Input Method	Finger, Gloved, Stylus	Finger, Gloved, Stylus	Finger, Gloved, Stylus
	OS	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11	Android, Linux, MacOS Win7, 8, 10, 11
Touch Display	Bonding Type	Air Bonding	Air Bonding	Air Bonding
	Active Area (mm)	376.32 x 301.06	376.32 x 301.06	376.32 x 301.06
	Outline Dimension (W x H x D) (mm)	396 x 324 x 14.29	396 x 324 x 18.68	396 x 324 x 18.68
	Weight	2.45 kg	2.58 kg	2.64 kg
	Inquiry	Inquiry F190PET-T21	Inquiry F190PET-Z01	Inquiry F190PET-TG1

Best Option - AD Board with Cable

For LVDS AD Board : AD-17RPE (VGA / DVI)

1.	DVI input
2.	VGA input
3.	Audio Phone Jack
4.	DC Jack
5.	LVDS Connector
6.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 110mm x 56mm

For LVDS AD Board : AD-0037D (HDMI / VGA / DP)

1.	HDMI input
2.	Display Port input
3.	VGA input
4.	Audio Phone Jack
5.	DC Jack
6.	LVDS Connector
7.	OSD Key Connector
Operating Temp. : -20 ~ 70℃
Outline : 120mm x 74mm

For eDP AD Board : AD-0112 (HDMI x 2 / DP)

1.	USB output
2.	HDMI input x 2
3.	Display Port input
4.	DC Jack
5.	Built-in OSD Key
6.	OSD Key Connector
7.	eDP Connector
Operating Temp. : -20 ~ 70℃
Outline : 100mm x 85mm

All Connector

PCAP Touch Display List

Inch	Item	Resolution	Brightness (cd/㎡)	Viewing Angle	B/L Life Time (Hr)	Panel Interface	Panel Operating Temp. (℃)	Touch FPC Type	Touch Interface
6.5"	F065PET-T81	640 x 480	800	89/89/89/89	70K	LVDS	-30 ~ 80	COB	USB / I2C
7"	F070PET-T41 C	800 x 480	400	89/89/89/89	50K	LVDS	-30 ~ 85	COF	USB / I2C
7"	F070PET-TA1	800 x 480	1,000	89/89/89/89	50K	LVDS	-30 ~ 80	COF	USB / I2C
10.1"	F101PET-T21	1024 x 600	250	70/70/60/60	15K	LVDS	-10 ~ 60	COB	USB / I2C
	F101PET-Z09	1280 x 800	400	89/89/89/89	20K	LVDS	-20 ~ 60	COF	USB / I2C
	F101PET-Z07	1280 x 800	1,000	85/85/85/85	50K	LVDS	-20 ~ 60	COF	USB / I2C
	F101PET-Z05	1920 x 1200	380	89/89/89/89	20K	eDP	-10 ~ 60	COF	USB / I2C
10.4"	F104PET-T41	800 x 600	450	80/80/60/70	50K	LVDS	-30 ~ 80	COB	USB / I2C
	F104PET-Z02	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / I2C
	F104PET-TA1	1024 x 768	1,000	88/88/88/88	50K	LVDS	-30 ~ 85	COB	USB / I2C
11.6"	F116PET-T21	1366 x 768	250	89/89/89/89	15K	eDP	0 ~ 50	COF	USB / I2C
11.6"	F116PET-T22	1920 x 1080	300	89/89/89/89	15K	eDP	0 ~ 50	COF	USB / I2C
12.1" (W)	F121PET-T41	1280 x 800	400	88/88/88/88	50K	LVDS	-20 ~ 70	COF	USB / I2C
12.1" (W)	F121PET-Z03	1280 x 800	1,000	89/89/89/89	50K	LVDS	-30 ~ 85	COF	USB / I2C
12.1" (S)	F121PET-T52	800 x 600	500	80/80/65/75	50K	LVDS	-30 ~ 85	COB	USB / I2C
	F121PET-Z05	1024 x 768	600	89/89/89/89	50K	LVDS	-30 ~ 85	COB	USB / I2C
	F121PET-TA1	1024 x 768	1,000	89/89/89/89	50K	LVDS	-30 ~ 75	COB	USB / I2C
13.3"	F133PET-Z05	1920 x 1080	400	89/89/89/89	50K	LVDS	-20 ~ 70	COF	USB / I2C
13.3"	F133PET-T41	1920 x 1080	400	89/89/89/89	30K	eDP	0 ~ 50	COF	USB / I2C
15"	F150PET-Z06	1024 x 768	350	80/80/70/80	50K	LVDS	0 ~ 65	COB	USB / I2C
	F150PET-Z05	1024 x 768	500	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / I2C
	F150PET-T81	1024 x 768	800	89/89/89/89	50K	LVDS	-20 ~ 75	COB	USB / I2C
	F150PET-TJ1	1024 x 768	1,800	80/80/70/80	50K	LVDS	-30 ~ 70	COB	USB / I2C
15.6"	F156PET-T51	1366 x 768	500	85/85/80/80	50K	LVDS	0 ~ 60	COF	USB / I2C
	F156PET-Z11	1920 x 1080	400	85/85/85/85	30K	eDP	0 ~ 50	COF	USB / I2C
	F156PET-T41	1920 x 1080	450	89/89/89/89	50K	eDP	0 ~ 60	COF	USB / I2C
	F156PET-Z14	1920 x 1080	500	89/89/89/89	50K	LVDS	-20 ~ 70	COF	USB / I2C
	F156PET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVDS	-30 ~ 85	COF	USB / I2C
	NV156FHM-T01 (ON Cell)	1920 x 1080	250	85/85/85/85	15K	eDP	0 ~ 50	COF	USB
17"	F170PET-T21	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F170PET-T32	1280 x 1024	350	85/85/80/80	50K	LVDS	0 ~ 50	COB	USB / RS232
	F170PET-T81	1280 x 1024	800	80/80/70/70	50K	LVDS	-30 ~ 85	COB	USB / RS232
17.3"	F173PET-T31	1920 x 1080	300	85/85/85/85	15K	eDP	0 ~ 50	COF	USB / I2C
18.5"	F185PET-T32	1920 x 1080	350	89/89/89/89	50K	LVDS	-20 ~ 70	COB	USB / RS232
19"	F190PET-T21	1280 x 1024	250	85/85/80/80	30K	LVDS	0 ~ 50	COB	USB / RS232
	F190PET-Z01	1280 x 1024	350	89/89/89/89	50K	LVDS	-15 ~ 70	COB	USB / RS232
	F190PET-TG1	1280 x 1024	1,600	85/85/80/80	50K	LVDS	-30 ~ 70	COB	USB / RS232
21.5"	F215PET-T23	1920 x 1080	250	89/89/89/89	50K	LVDS	0 ~ 60	COB	USB / RS232
	F215PET-Z13	1920 x 1080	500	89/89/89/89	50K	LVDS	-10 ~ 60	COB	USB / RS232
	F215PET-TA1	1920 x 1080	1,000	89/89/89/89	50K	LVSD	-10 ~ 80	COB	USB / RS232
23.8"	F238PET-T21	1920 x 1080	250	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB / RS232
	F238PET-Z05	1920 x 1080	400	89/89/89/89	50K	LVDS	0 ~ 50	COB	USB / RS232
	F238PET-TA1	1920 x 1080	1,000	88/88/88/88	50K	LVDS	-30 ~ 80	COB	USB / RS232
27"	F270PET-T31	1920 x 1080	300	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB / RS232
32"	F320PET-Z02	1920 x 1080	400	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB
32"	F320PET-T31	3840 x 2160	300	89/89/89/89	30K	LVDS	0 ~ 50	COB	USB

Touch Display Feature

Touch Display Feature

Projective Capacitive (PCAP) Touch Display

We provide 5.7" ~ 32" Touch Display and complete kits like : AD Board and Cables.
If using a High Brightness Display, you can choose the AD Board which have light sensor function that can adjust panel's brightness automatically.

PCAP touch supports 10-finger multi-touch capability, light gloves and stylus touch (need to adjust the firmware),
We have a professional engineering team to provide assistance, and can evaluate the most suitable products according to your needs!

Our Touch Display is compatible with various OS and suitable for various types of terminal products.
Such as: Charging pile, POS machine, IPC, HMI, KIOSK, KVM and rugged/automation/transportation/industrial equipment, robotics etc.

Support multiple touch methods according to usage and environment

PCAP Touch Display can sense up to 10 simultaneous touch points and using light glove / stylus touch.

AD Board, Cables and Auto dimming Board

We can provide complete AD Board kits and Auto Dimming Board that can adjust B/L brightness automatically

Touch Display Kits

Compatible with Windows, MacOS, Linux and Android OS

Our Touch Displays are available for Windows, MacOS, Linux and Android OS

Touch Display Application

Touch Display Application

Touch Customized Service

PCAP / RTP Touch Customized Service

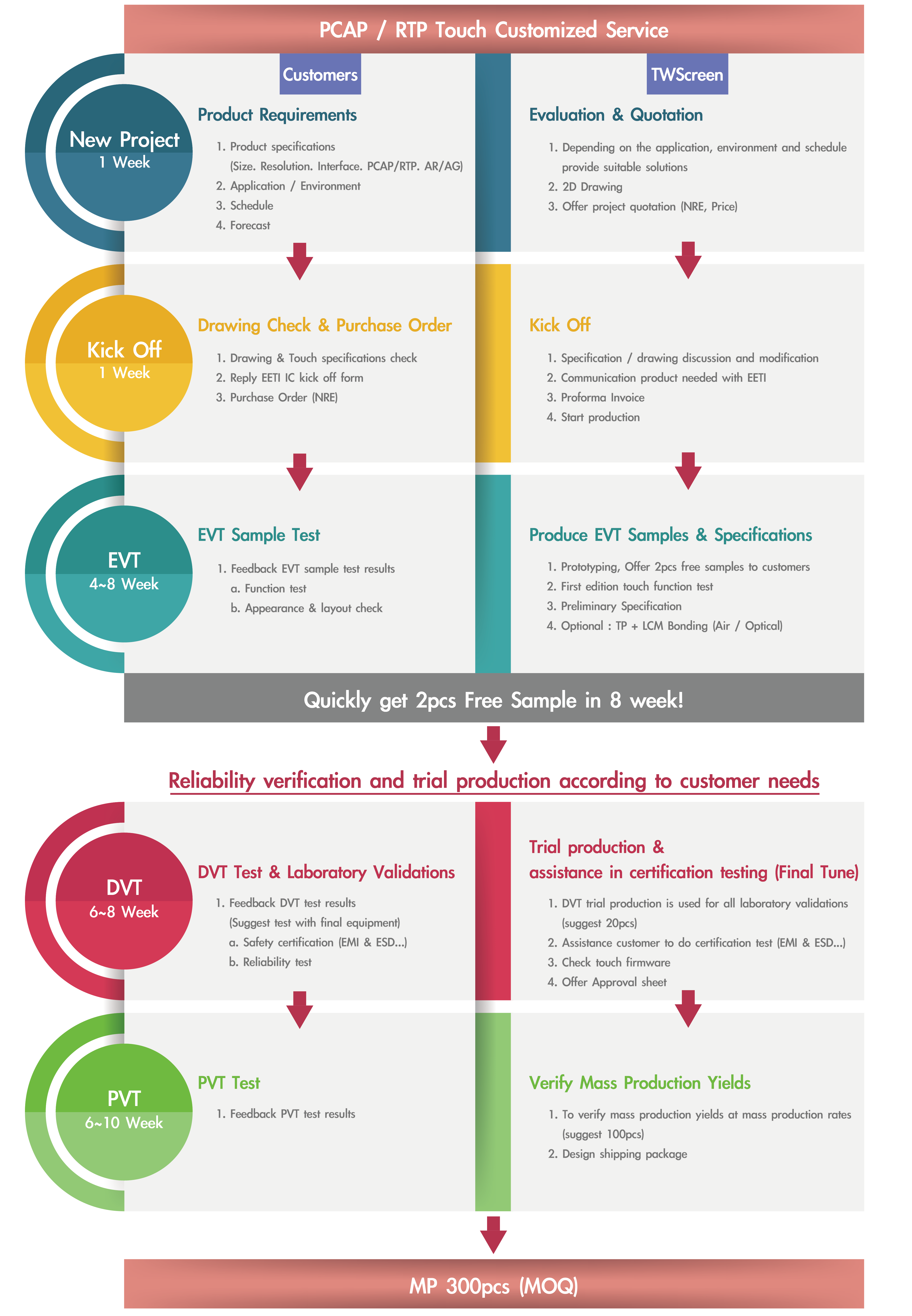

Step	Customers	TWScreen
NEW Project : 1 Week	Product Requirments 1. Product Specifications (Size, Resolution, Interface, PCAP/RTP, AR/AG) 2. Application / Environment 3. Schedule 4. Forecast	Evaluation & Quotatoion 1. Depending on the application, Environment and schedule provide suitable solutions 2. 2D Drawing 3. Offer project quotation (NRE, Price)
Kick Off : 1 Week	Drawing Check & Purchase Order 1. Drawing & Touch specifications check 2. Reply EETI IC kick off form 3. Purchase Order (NRE)	Kick Off 1. Specification / drawing discussion and modification 2. Communication project needed with EETI 3. Proforma Invoice 4. Start production
EVT : 4 ~ 8 Week	EVT Sample Test 1. Feedback EVT sample test results a. Function test b. Appearance & layout check	Produce EVT Samples & Specifications 1. Prototyping, Offer 2pcs free samples to customers 2. First edition touch function test 3. Preliminary Specification 4. Optional : TP + LCM Bonding (Air / Optical)
Quickly get 2pcs Free Sample in 8 week!
Reliability verification and trial production according to customer needs
DVT : 6 ~ 8 Week	DVT Test & Laboratory Validations 1. Feedback DVT test results (Suggest test with final equipment) a. Safety certification (EMI & ESD...) b. Reliability test	Trial Production & assistance in certification testing (Final Tune) 1. DVT trial production is used for all laboratory validations (sugest 20pcs) 2. Assistance customer to do certification test (EMI & ESD...) 3. Check touch firmware 4. Offer Approval sheet
PVT : 6 ~ 10 Week	PVT Test 1. Feedback PVT test results	Verify Mass Production Yields 1. To verify mass production yields at mass production rates (suggest 100pcs) 2. Design shipping package
MP 300pcs (MOQ)

19 PCAP TOUCH 19.0" Touch Display

19" LCD Module with Touch (PCAP)
